TNE technology 기어증속 터보압축기

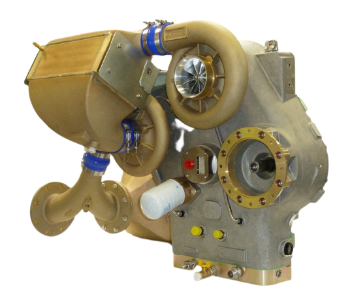

GEAR DRIVEN HIGH SPEED TURBO COMPRESSSOR
기어증속 고속 터보압축기
제품특징
- 400+ HP rating
- ≥80% compressor efficiency

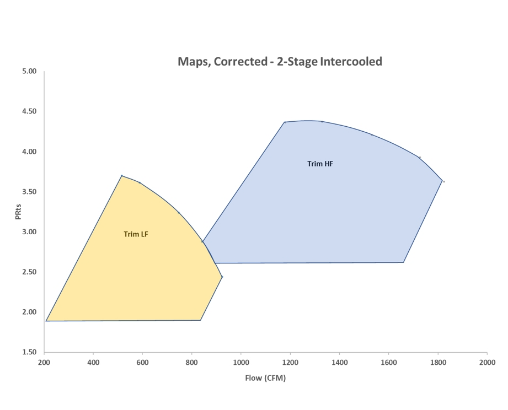

- 2 Bar(a) – 5 Bar(a) at up to 125 ppm air at SAE Std. inlet conditions.
- Customizable – Options for pressure and flow-specific solutions.
- Compact – 355 lbs. complete

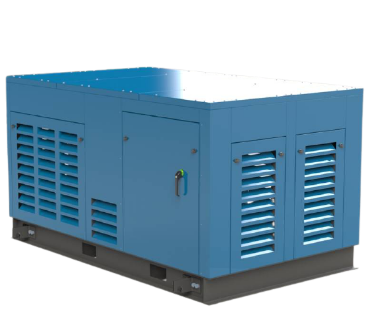

제품사양



Dimensions | 108"L x 66"W x 54"T |
---|---|
Weight | 6,000 lbs. |
Input Power | 380-480V, 50-60 Hz, 3ph |
Input Rated Motor Power Input | 75-190 kW (100-250 Hp) |
Input Drive Speed | 700-2300 RPM |
Speed Control | Sensorless Vector Control Variable Frequency Drive |
Lubricants | Transmission Oil - ISO-46 Full Synthectic Grade |
Cooling | Intercooler - Fan driven radiator Oil - Fan driven radiator |
Air Inlet Filtration | MERV-13 rating Large Dust Holding Capacity Serviceable Filter Element |
Noise Level | Below 80+/- 2 db (A) Large Dust Holding Capacity Serviceable Filter Element |
Remote control and monitoring | Ethernet/Modbus/Profii Bus |
응용분야
- 수처리
- 산업용 압축공기 공급
- 분체 이송

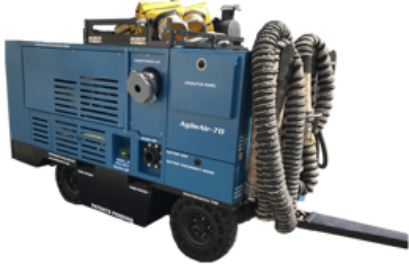

- 항공기 지상지원 장비(Aviation Ground Support)

선박 공기저항 감소시스템(ALDR)
